The Atlas ESR provides instant measurement of a capacitor's ESR and it's
capacitance value. Using the supplied gold plated probes (removable),
the Atlas ESR can measure ESR down to a resolution of 0.01 ohms, up to
40 ohms. It can even measure ESR for capacitors that are in-circuit.
Measurements are made at the industry standard frequency of 100kHz.
Probes are now removable, allowing 2mm compatible probes to be fitted.
Audible alerts are produced for various ESR levels allowing you to
perform many tests in succession without having to look at the display.
Features:
- Automatic analysis-start when you apply the probes.

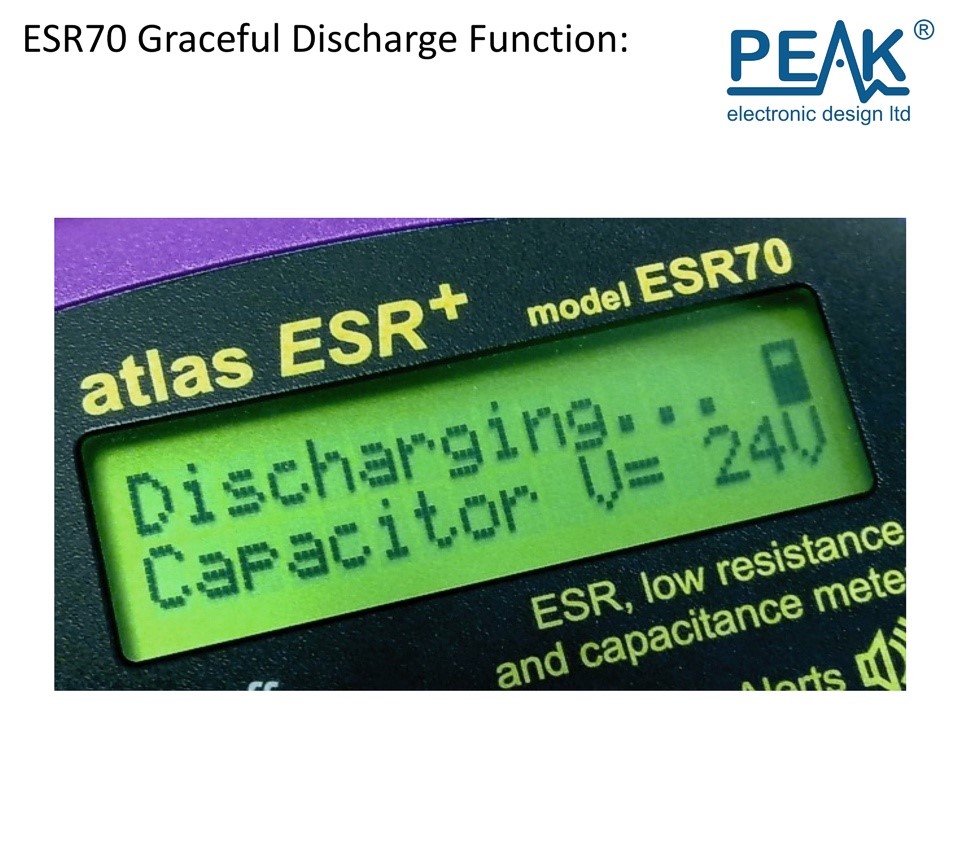

- Automatic capacitor discharge using controlled discharge function.
- ESR (and low DC resistance) measurement (even in-circuit).
- Capacitance measurement (if testing out-of-circuit).
- Audible alerts for various ESR levels.
- Extended ESR measurement range up to 40 Ohms.

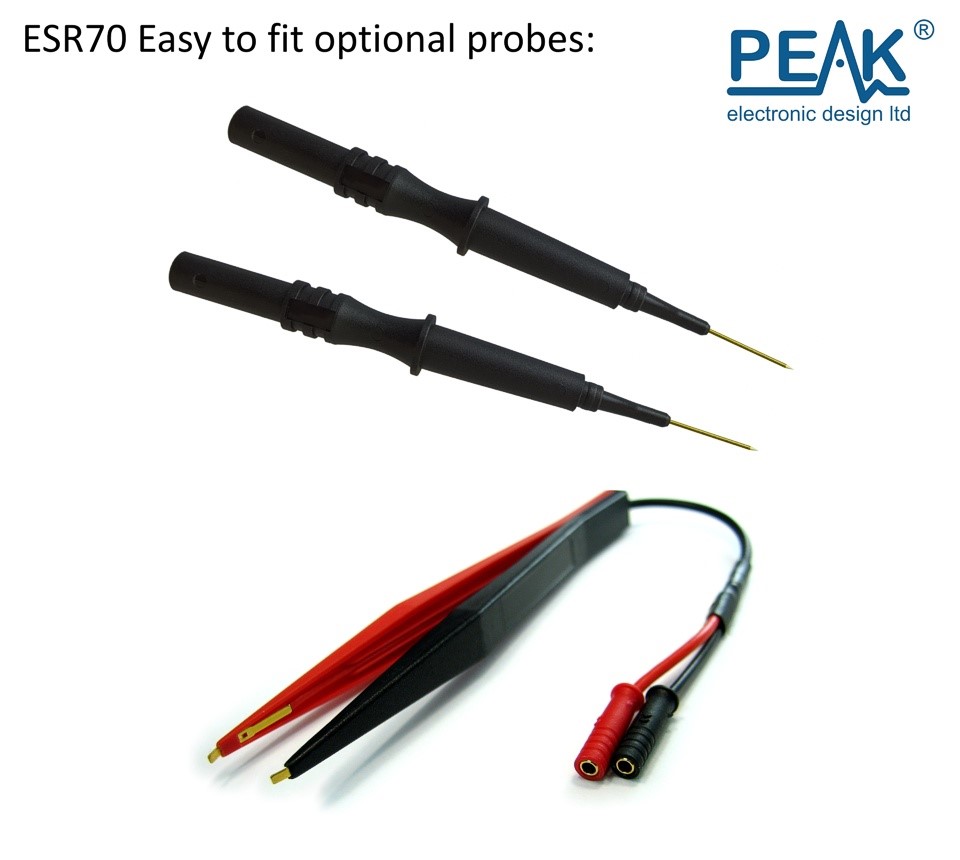

- Optional probe alternatives easily fitted.
Includes:
- ESR70 Passive Component Analyser.

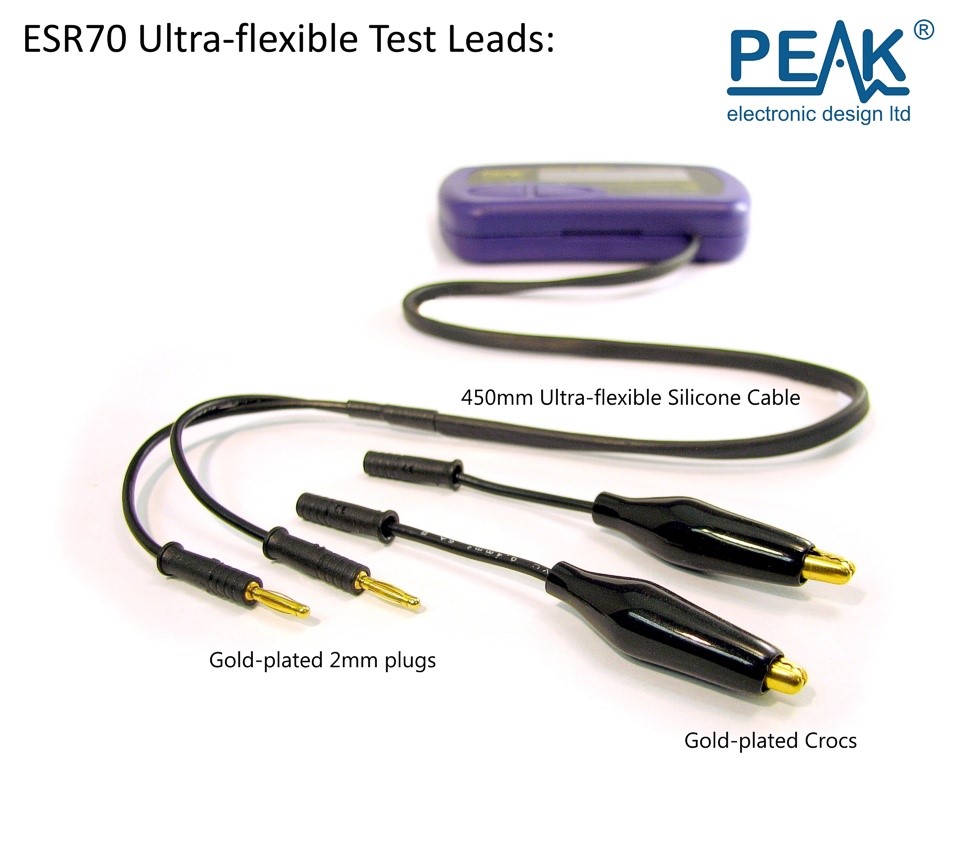

- Extra-long and extra-flexible test cables (450mm of Silicone covered cable).
- 2mm plugs and sockets with removeable gold plated crocodile clips.
- Comprehensive illustrated user guide.
- GP23 Alkaline battery.
Technical Specifications
ESR range: 0.00 Ohms to 40.0 Ohms
ESR accuracy: ±1.5% (typical)
ESR resolution (ESR<2 Ohms): 0.01 Ohms to 0.02 Ohms
ESR resolution (ESR>2 Ohms): 0.1 Ohms to 0.2 Ohms
Capacitance range: 1uF to 20000uF
ESR test frequency: 100kHz ±1.5%
ESR test voltage (into 40 Ohms): 40mV (typical)
Operating temperature range: 10°C to 40°C (50°F to 104°F)
Battery type: GP23A, V23A, L1128, MN21 (12V type)
Auto-off period: 1 minute (typical)
Downloads
Data Sheet (EN)
User Guide (EN)
Optional
certificate of calibration includes results of manual verification
tests. Instrument is calibrated the same way regardless of whether you
require the certificate.
