Welcome to Amascott an (Peak Electronics Authorized Distributor)

Checkout our inventory all items are in stock
!

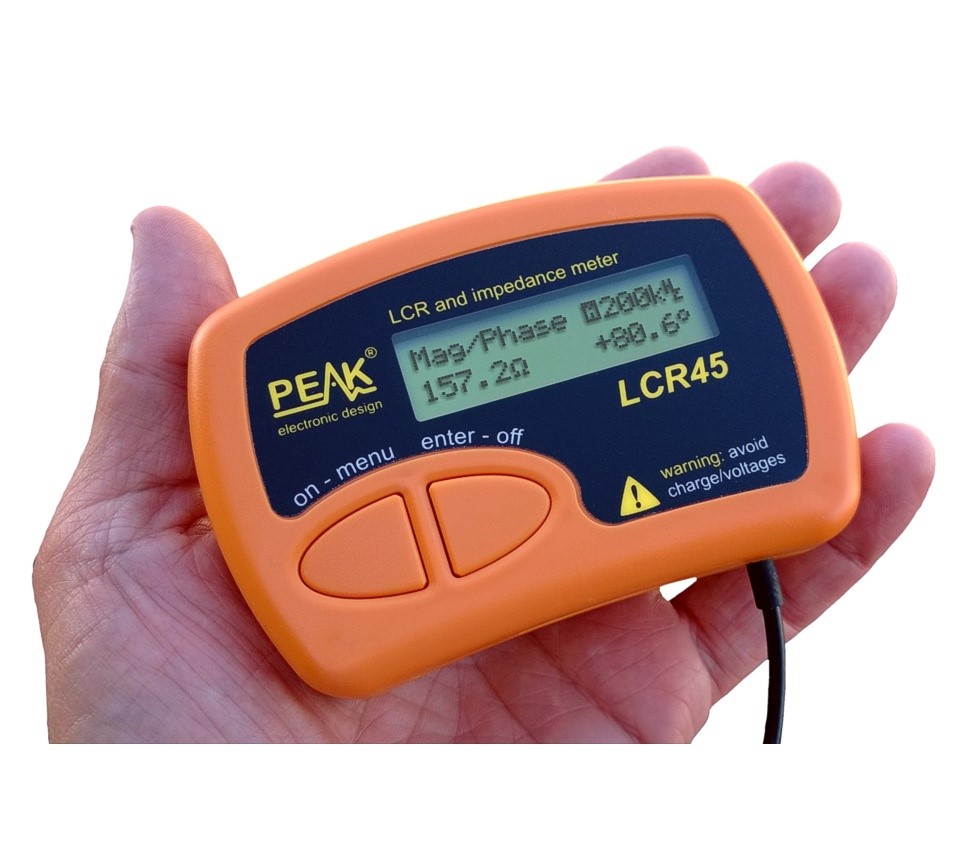

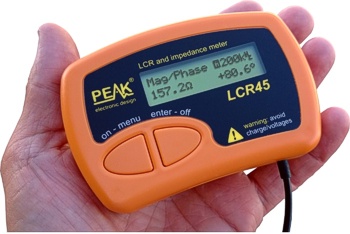

Peak LCR45 and Impedance Meter

The new LCR45 does everything that the popular LCR40 does, but we've added some significant enhancements. The LCR45 features a new high capacity micro and high resolution ADCs.

Data Sheet User Guide

!

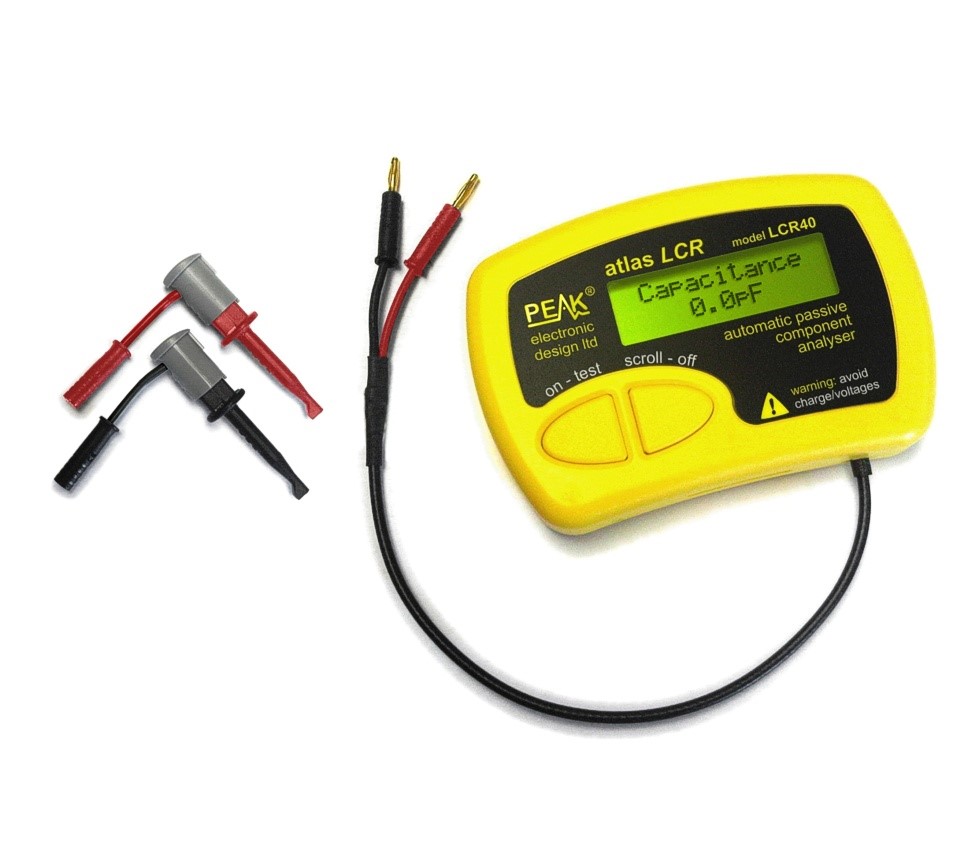

Peak LCR40 Passive Component Analyser

The Atlas LCR automatically identifies and analyses almost any passive component (Inductor, Capacitor or Resistor). It measures it's parameters using automatically selected test frequencies (DC, 1kHz, 15kHz and 200kHz).

Data Sheet User Guide

!

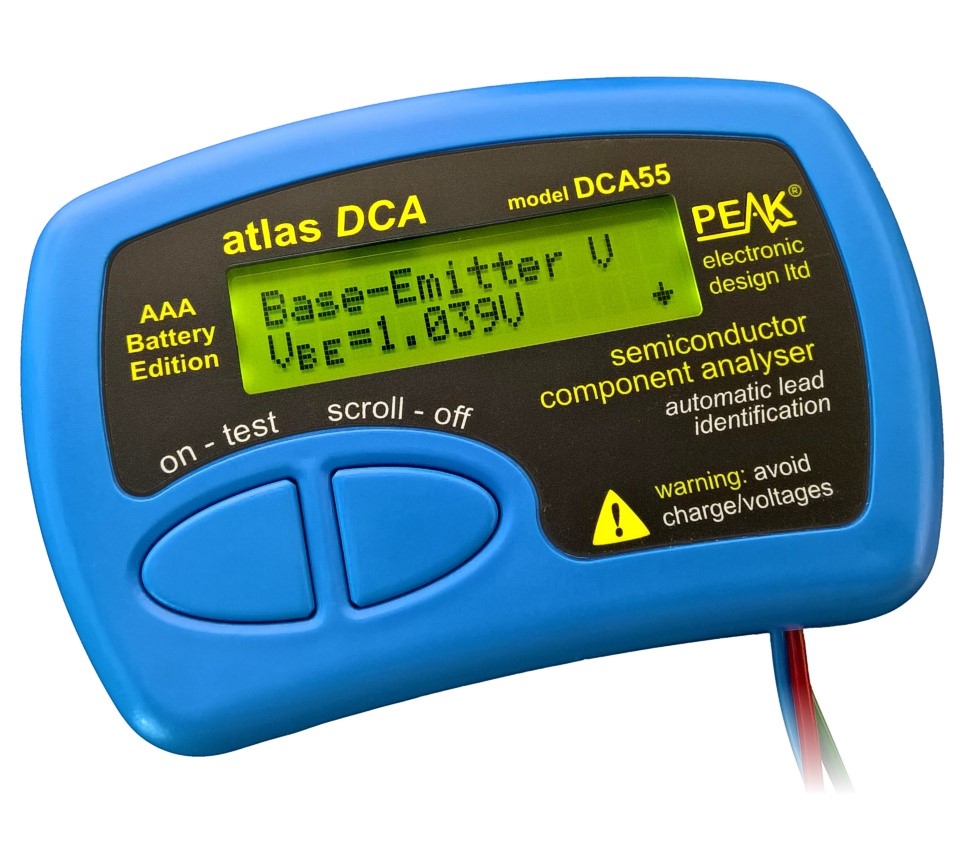

Peak DCA55 Semiconductor Analyser

Intelligent and flexible semiconductor analyser. Supports transistors MOSFETs, JFETs (gate pin only can be identified), diodes, LEDs and lots more. Automatically identifies type of component, pinout and other important parameters.
Now features transistor leakage measurement and Germanium/Silicon identification.

Data Sheet User Guide

!

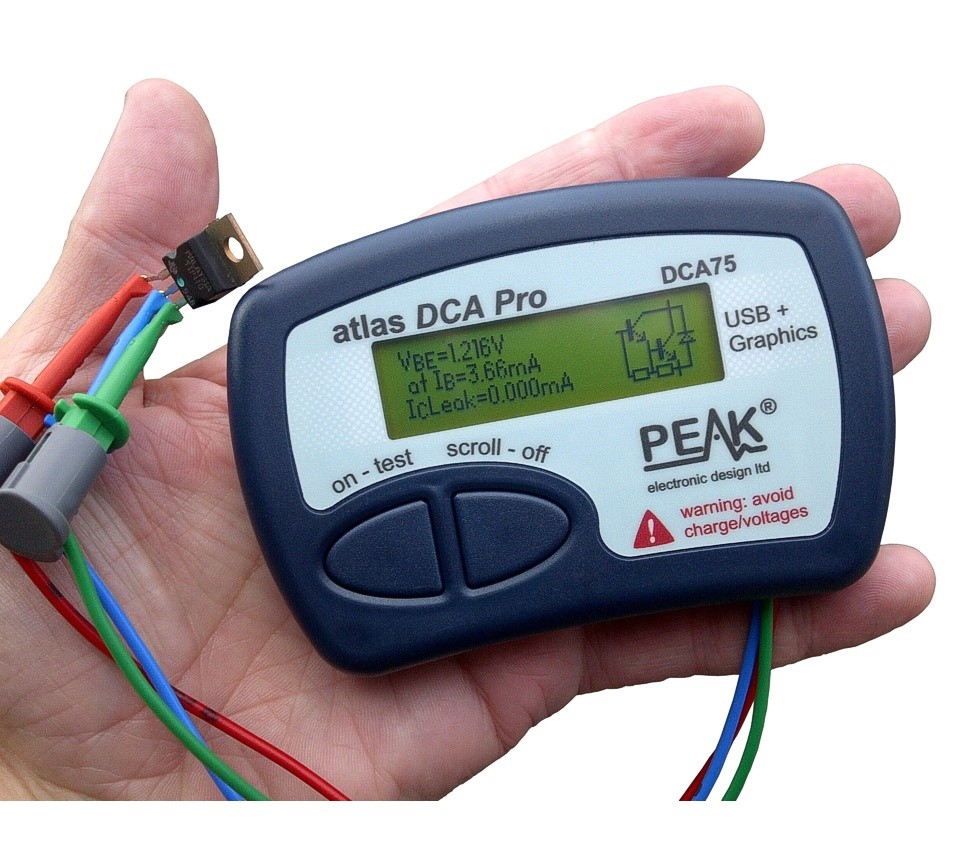

Peak DCA75 Semiconductor Analyser with Curve Tracing

Featuring USB and a graphics display, this new instrument represents a major advance in handheld semiconductor analysis.

Datasheet User Guide

!

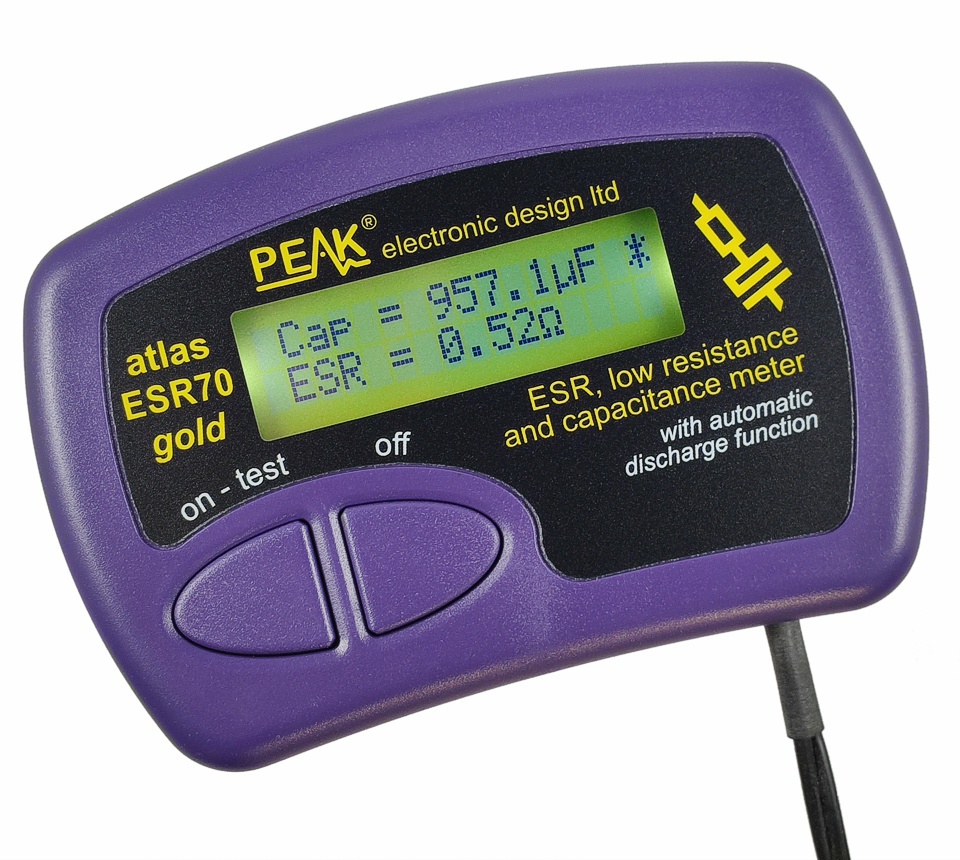

Peak ESR70 Plus - Capacitor Analyse

Now features automatic component detection to enable hands-free operation from component to component. Supplied with new 2mm plugs and sockets, removable gold croc clips and battery.

Analyse any type of capacitor from 1uF to 22000uF. Motor capacitors, smoothing capacitors, any dielectric type.

Data Sheet User Guide

!

Peak SCR100 Thyristor and Triac Analyser

Thyristor and Triacs need special test conditions to analyse effectively - that's where the new Atlas SCR comes in.
The SCR100 can apply gate test currents from 100µA up to 90mA (with test load currents of up to 100mA) so it's not limited to sensitive parts.

Data Sheet User Guide

!

Peak Atlas ZEN - Zener Diode Analyser

est Zeners, Avalanche diodes, VDRs, TVSs, LEDs (and LED strings) and more with the new Atlas ZEN. Tests devices up to 50V at selectable currents (2mA, 5mA, 10mA and 15mA).

Displays Zener voltage and slope resistance.

Uses short current pulses to minimise temperature rise even at 50V and 15mA test conditions.

User Guide

!

Peak Atlas Star Pack - Atlas LCR + Atlas DCA + Premium Case

A fantastic premium instrument pack containing both the
Atlas LCR and Atlas DCA all presented in a stunning
padded carry case (with gold Peak logo). Note that the
LCR is now supplied with the new 2mm plug 'n' socket
probes.
!

Peak Atlas Pro Pack - Atlas LCR45 + Atlas DCA75 + Premium Case

A fantastic premium instrument pack containing both the
Atlas LCR45 and Atlas DCA75  all presented in a stunning
padded carry case (with gold Peak logo). Note that the
LCR is now supplied with the new 2mm plug 'n' socket
probes.
!

Peajk Atlas IT Ultimate Set (UTP05e)

A very comprehensive set which includes the UTP05 cable analyser and many useful accessories.

Items included:

  • Atlas IT Instrument.
  • 24 x Identified Terminators (sets A, B & C)
  • 2 x Terminators (non-identified types).
  • 2 x Peak RJ11-RJ45 Adapters.
  • RJ45 to 8 x Gold Croc Adapter Set.
  • Fitted battery and spare battery.
  • 4 x 250mm Patch cables for socket and patch panel testing.
  • Comprehensive illustrated user guide.
  • Full-colour cable configuration chart for 8 most common cable configurations included in user guide.
  • Padded carry case with extra space for accessories.
